Description
FEATURES
Challenger End or Serial Output End (SDA)
High level interface from either Computer or TCP/IP add-on cards with serial printer port
3 separate stacks for 3 different priority signals
40 message capacity per stack
Prioritizes messages and displays accordingly
Sets a time stamp from the Challenger upon initialization
Communications and System failure indicators
Message buffer overflow indication on display
Displays only selective data depending on STAR
CHARACTERS programmed in the Challenger printer string
Standard Communication speed: 9600 baud
Standard mounting holes to suit Challenger enclosures

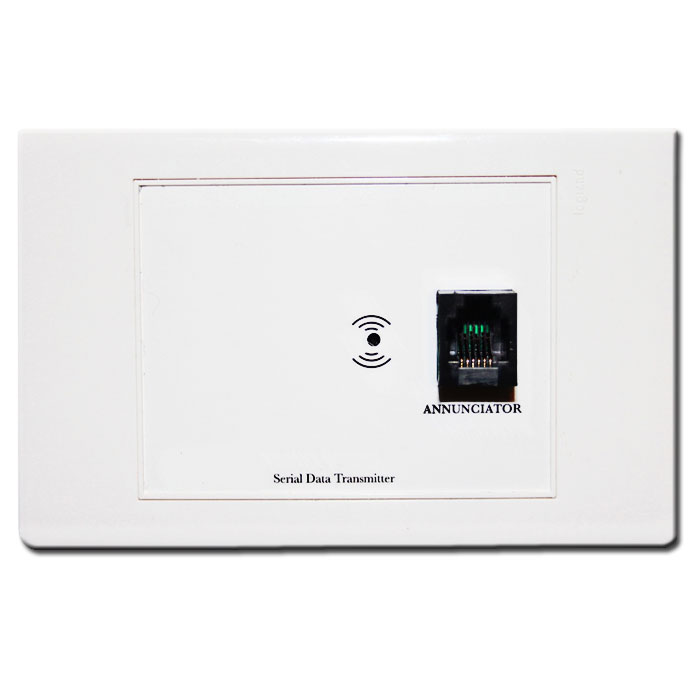

Display End (SDT)
Displays data transmitted from the Challenger serial port
Keeps track of how long a message is being displayed and generates an audio alarm at the display end if message is not cleared within a specific time
No external power supply required (Uses LAN power) unless very long cable run is used
Extern power supply facility if needed
16 possible address expandable to 32
Can handle up to 120 messages at a time
Mounted in elegant HPM wall plate
Data back up if there is system failure( as long as there is power)
